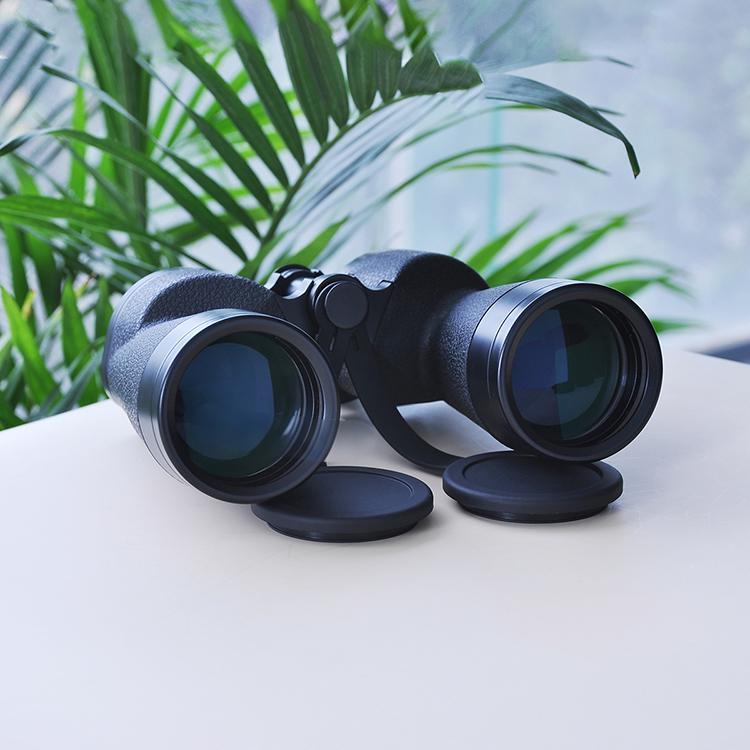

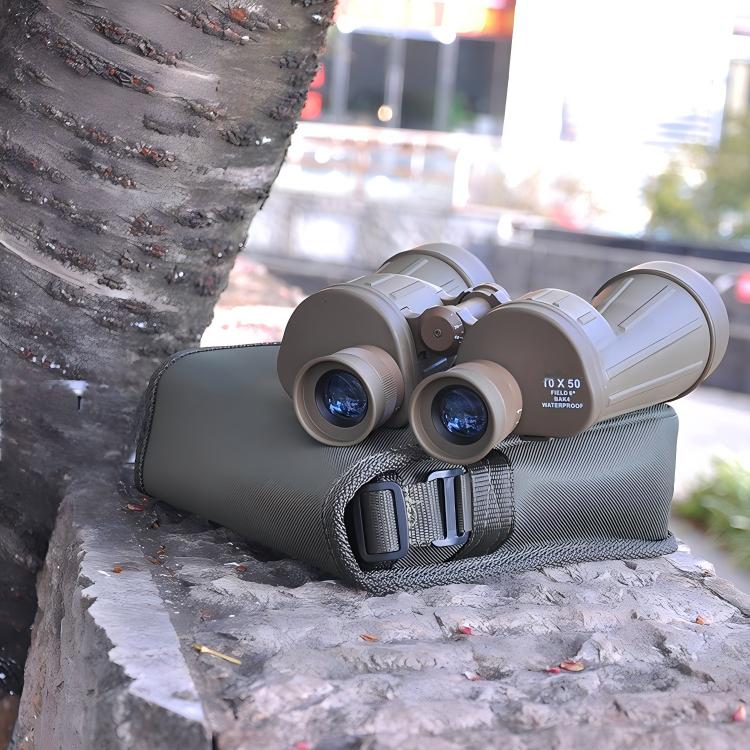

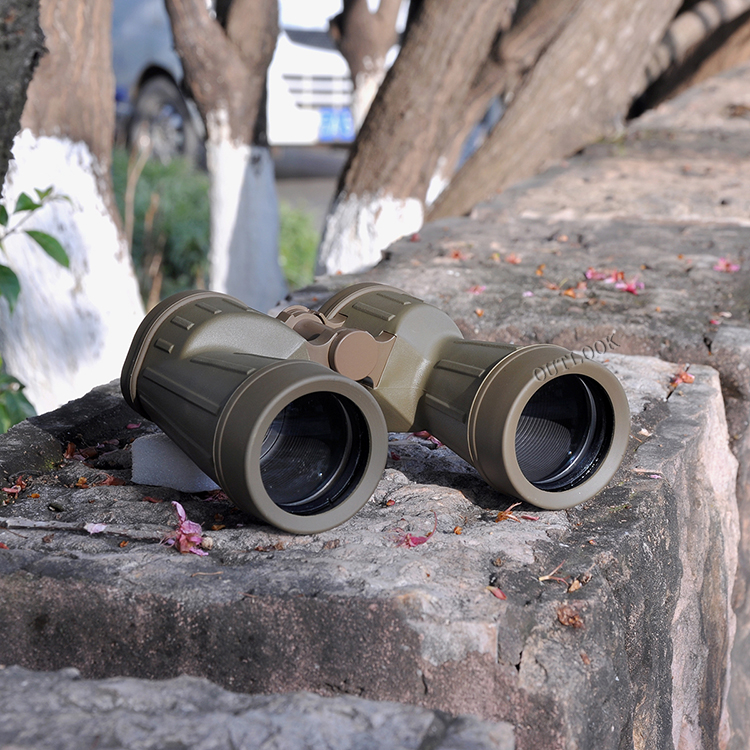

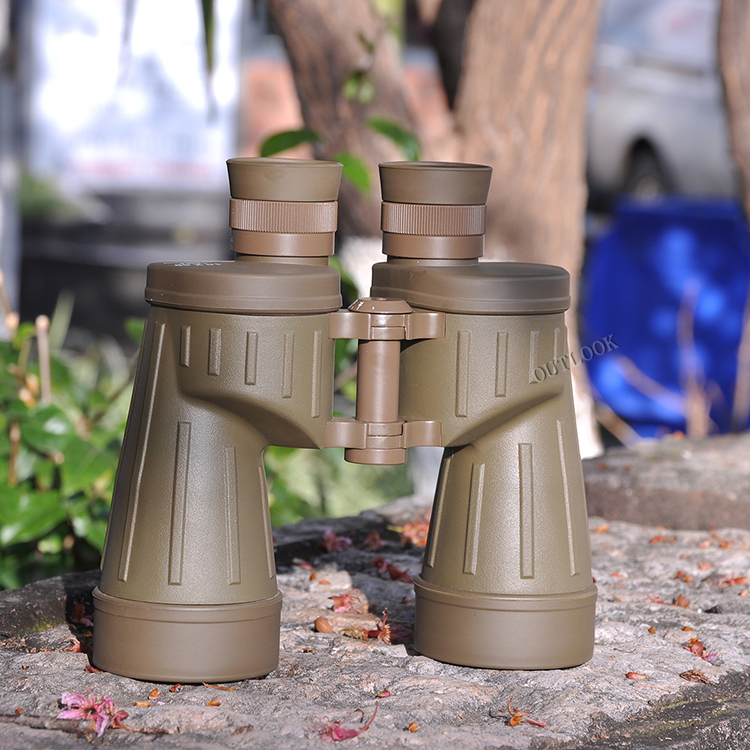

CXXMZRR0716C 10x50 Military Binoculars

China Xinxing Xiamen has launched the CXXMRR250716C 10x50 Military Binoculars :

Standard Configuration:

  • BAK4 prisms, fully multi-coated broadband green film.
  • PQ600D black Oxford cloth soft case or matching leather box, suede-like flannel cloth, corrugated color box, regular instruction manual, certificate of conformity, warranty card, plastic bag, WPQ strap.

Features:

★ Equipped with BAK4 prisms for sharp and clear imaging. The 15x high magnification delivers clearer and brighter images, making buildings 1,000 meters away appear as if they are right in front of you—similar to the view when looking up from the bottom of a building. Excellent optical performance.
★ High-quality rubber coating offers a comfortable grip with fine craftsmanship. Its superior waterproofing and resistance to high/low temperatures fully meet the needs for field use or harsh environments.
★ 18mm long exit pupil distance ensures convenient and comfortable viewing.
★ American-style suspended prism design ensures stable and reliable imaging.
★ Full metal structure for sturdiness and durability.
★ Shockproof and vibration-resistant.
Product Parameters
  Model CXXMRR250716B
  Specification 10X50
  Brand CXXM
  Standard 国军标(GJB)
National Military Standard (GJB)
  Magnification 10.0× (with National Defense CNAS Test Report)
  Objective Diameter 50mm
  Field of View 108m/1000m;315FT/1000YDS
  Exit Pupil Distance (mm) 20
  Exit Pupil Diameter (mm) 5.3MM (with National Defense CNAS Test Report)
  Field of View 6° (Left 6°4′, Right 6°5′) (with National Defense CNAS Test Report)
  Minimum Focus Distance (m) 7
  Relative Brightness 25
  Twilight Factor 22.8
  Resolution 5.54″ (with National Defense CNAS Test Report)
  Diopter Zero Error -0.4m⁻¹ (with National Defense CNAS Test Report)
  Eyepiece Diopter Adjustment Range (-5˜+5)m⁻¹ (with National Defense CNAS Test Report)
  Image Tilt +5.0′ (with National Defense CNAS Test Report)
  Relative Image Tilt 0 (with National Defense CNAS Test Report)
  Prism System Porro
  Interpupillary distance 52~76mm
  Optical Composition 2E1G+4E3G
  Coating 420-680nm, R<0.5% (AVG);420-680nm, R<1.0% (ABS);Blue coating 550nm(MgF₂);Full broadband multi-layer green coating + anti-reflective blue coating
  Coating Spec. 550nm(MgF₂)
  Objective Lens Cover Yes
  Material Rubber (NBR+PVC)
  Ranging Yes (with reticle)
  Prism Material BAK4
  Focusing System Binocular separate adjustment
  Eyecup Type Foldable rubber
  Anti-fog Yes
  Waterproof Yes
  Packaging 10 pieces per carton
  Net Weight (g) Approximately 1000g
  Dimensions (mm) 189×59×177
  Outer Carton Dimensions (cm) 46×43×24
  Gross Weight per Carton 15.5kg
  Operating Temperature -43-+55℃
  Bag Exclusive 600D Oxford cloth bag + 25mm shoulder strap
  Cleaning Cloth ▉ Yes □ No
  Instruction Manual ▉ Yes □ No


Product Details
High Quality Easy to Use

Applications
Industrial Handling Military Handling




FAQ

1.Binoculars Price Range
(1) Entry-level civilian: ~¥50-300, not for military use.
(2) Mid-range: ~¥800-3,000, rarely used in non-frontline military auxiliaries.
(3) High-end professional: ~¥5,000-20,000, usable for basic military field reconnaissance.
(4) Top military-grade: Over ¥30,000, with high durability, excellent optics for extreme battlefields.

2.Magnification Selection

(1) 7-10x: Stable, wide field of view, ideal for military patrols.
(2) 8-12x: Balances magnification and stability, used in military reconnaissance.
(3) 15-25x: For specific military reconnaissance with tripods to avoid shaking.

3.Binocular Coatings

Coatings reduce reflection, boost light transmittance, and enhance clarity. Military binoculars rely on FMC (best) for clear viewing in complex battlefield light; MC meets basic military needs.

4.Waterproof Ratings

(1) Daily waterproof: Resists light splashes, not for military use.
(2) Waterproof: Withstands brief 1m submersion, usable in rainy battlefields.
(3) Nitrogen-filled: Fully waterproof/anti-fog, essential for military use in harsh environments.

5.Suitable Scenarios

(1) Outdoor activities (similar to military training/patrol/reconnaissance).
(2) Entertainment: Unrelated to military.
(3) Professional uses: Navigation/security monitoring aid military maritime operations/base security.
