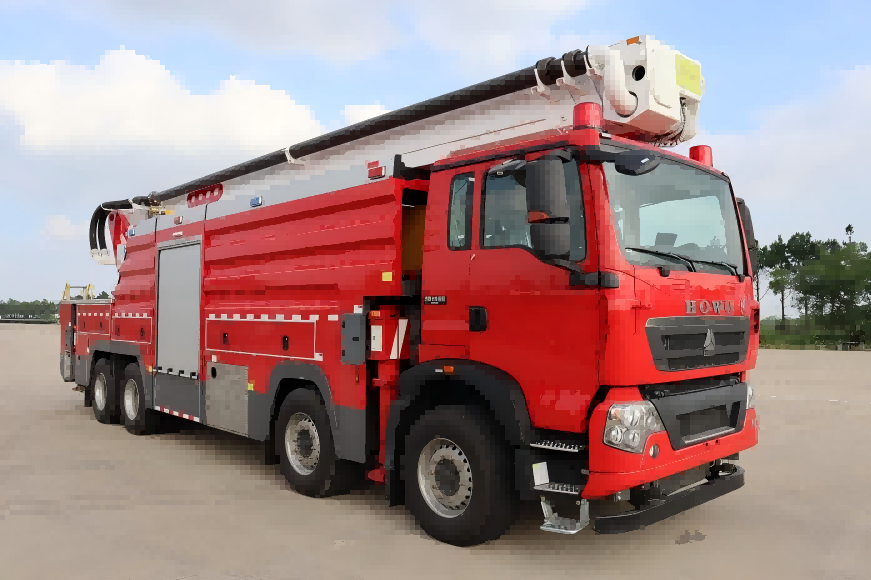

Built on a robust 8×4 HOWO heavy-duty chassis, this aerial ladder fire truck combines long-range water/foam suppression capability, a stable 36-meter aerial platform, and advanced safety control systems. It enables firefighters to perform elevated rescue, external firefighting, and precision extinguishing operations in environments where conventional fire trucks cannot effectively reach.
| Parameter | Specification |
|---|---|
| Vehicle Model | MX5420JXFJP36 HOWO Aerial Ladder Fire Truck |
| Chassis Type | 8×4 Heavy-Duty Fire Truck Chassis |
| Engine Power | 371 kW |
| Maximum Driving Speed | 95 km/h |
| Crew Capacity | 2 Firefighters |
| Water Tank Capacity | 6,000 kg |
| Foam Tank Capacity | 4,000 kg |
| Overall Dimensions | 11.93 × 2.55 × 3.90 m |
The MX5420JXFJP36 integrates a powerful water and foam firefighting system designed for rapid fire suppression in large-scale incidents.
Main Pump:
Priming System:
The high-capacity pump system provides strong water delivery for:
The aerial working system features a combination of telescopic and articulated boom structures, providing flexible access to elevated fire locations.
| Function | Specification |
|---|---|
| Maximum Working Height | 36.1 m |
| Maximum Outreach | 20.1 m |
| Rotation Range | 350° |
| Elevation Angle | -90° to +90° |
The articulated boom design improves maneuverability around obstacles such as:
The vehicle-mounted aerial monitor provides powerful long-distance firefighting capability from elevated positions.
The monitor supports:
The MX5420JXFJP36 is equipped with multiple safety systems to improve operational reliability during complex rescue missions.
Operators can control the aerial system through:
This provides flexibility during different emergency scenarios.
The hydraulic outrigger system provides rapid stabilization before aerial operation.
Features:
The integrated safety interlock system prevents unsafe operation by monitoring:
This reduces operational risks during high-altitude rescue missions.
Before deployment, the MX5420JXFJP36 completed a 5,008 km reliability test with zero failures, demonstrating durability and operational stability for demanding firefighting environments.
The 36-meter aerial platform enables firefighters to:
Suitable for:
The high-flow monitor and foam system provide effective response for large-scale industrial fires.
The vehicle supports:
Compared with conventional firefighting vehicles, this high-reach fire truck provides:
✔ Greater vertical firefighting capability
✔ Longer water and foam projection distance
✔ Enhanced rescue access
✔ Strong heavy-duty chassis performance
✔ Flexible aerial operation
✔ Reliable safety protection systems
The MX5420JXFJP36 is an ideal solution for organizations requiring a high-performance aerial ladder fire truck for professional firefighting and emergency rescue missions.
The MX5420JXFJP36 provides a maximum aerial working height of 36.1 meters, suitable for high-rise firefighting and elevated rescue operations.
The vehicle carries:
allowing extended firefighting operations without immediate replenishment.
The main pump delivers 100 L/s at 1.5 MPa, providing high-volume water supply for demanding fire suppression tasks.
Yes. The aerial system supports both wireless remote control and manual operation.
The truck features automatic outriggers, upper/lower interlock protection, and multiple operational safety monitoring systems.
