The Lightweight 3-Axis Gimbal Camera Series is a high-performance airborne imaging payload family designed for small to medium UAV platforms, including multi-rotor drones, VTOL fixed-wing UAVs, and professional aerial inspection systems.
Featuring a compact 3-axis high-precision servo stabilization platform, the series integrates advanced optical sensors including electro-optical cameras, uncooled thermal imaging cameras, and laser rangefinders to provide comprehensive aerial observation capabilities.
With AI-powered image processing, automatic target recognition, intelligent tracking, optical zoom, thermal detection, and target positioning functions, these lightweight UAV payloads deliver reliable performance for aerial surveillance, search and rescue, infrastructure inspection, emergency response, and professional drone operations.
The modular design, low power consumption, quick deployment capability, and MAVLink compatibility make this series an ideal payload solution for next-generation UAV systems.
The series is optimized for weight-sensitive UAV platforms while maintaining professional imaging performance.
Key advantages:
Suitable for:
All models use a high-precision 3-axis servo stabilization system to maintain stable imaging during UAV flight.
| Parameter | Specification |
|---|---|
| Azimuth Rotation | 360° Continuous Rotation |
| Pitch Range | -110° to +45° |
| Roll Range | -40° to +40° |
| Stability Accuracy | ≤0.1mrad (1σ) |
| Frame Angle Accuracy | ≤0.3° (1σ) |
| Maximum Angular Rate | ≥60°/s (Azimuth & Pitch) |
The stabilization system effectively compensates for aircraft vibration, wind disturbance, and flight movement, ensuring clear images during dynamic aerial missions.
The UAV gimbal camera series integrates intelligent algorithms to improve operational efficiency.
The system can automatically detect and classify targets in real time, helping operators quickly identify important objects.
AI tracking functions allow the payload to lock onto and follow moving targets.
Features include:
When a target is temporarily blocked or lost, the system can assist with target reacquisition.
The series provides different payload configurations to meet various mission requirements.

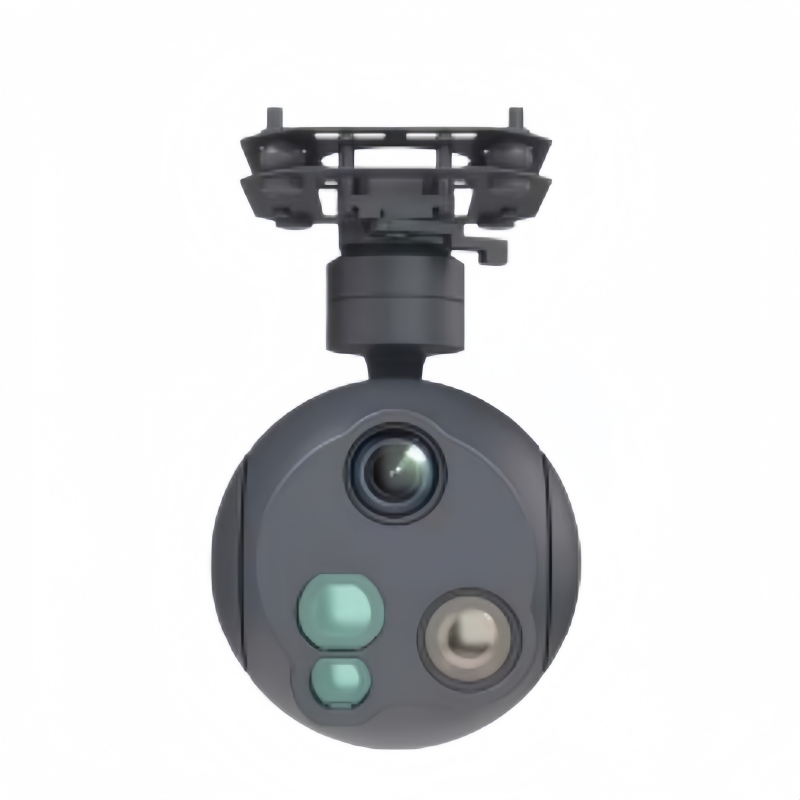

The TX108TA integrates:
This multi-sensor configuration provides day/night observation and target positioning capability in a lightweight UAV payload.
| Parameter | Specification |
|---|---|
| EO Camera | 2MP |
| Optical Zoom | 10× |
| EO FOV | 60.2° × 33.9° ~ 6.6° × 3.7° |
| EO Focal Length | 4.8mm ~ 48mm |
| Thermal Sensor | 640×512 |
| Thermal Lens | 25mm |
| Pixel Pitch | 12μm |
| Thermal FOV | 17.5° × 14° |
| Laser Rangefinder | 10m–1,200m |
| Control Interface | RS422 / UART / ETH (UDP) |
| Video Interface | SYNC422 / ETH |
| Storage | ≤128GB Micro SD |
| Power Supply | 12–32V DC |
| Weight | ≤750g |
| Dimension | 108 × 123.6 × 172.1mm |

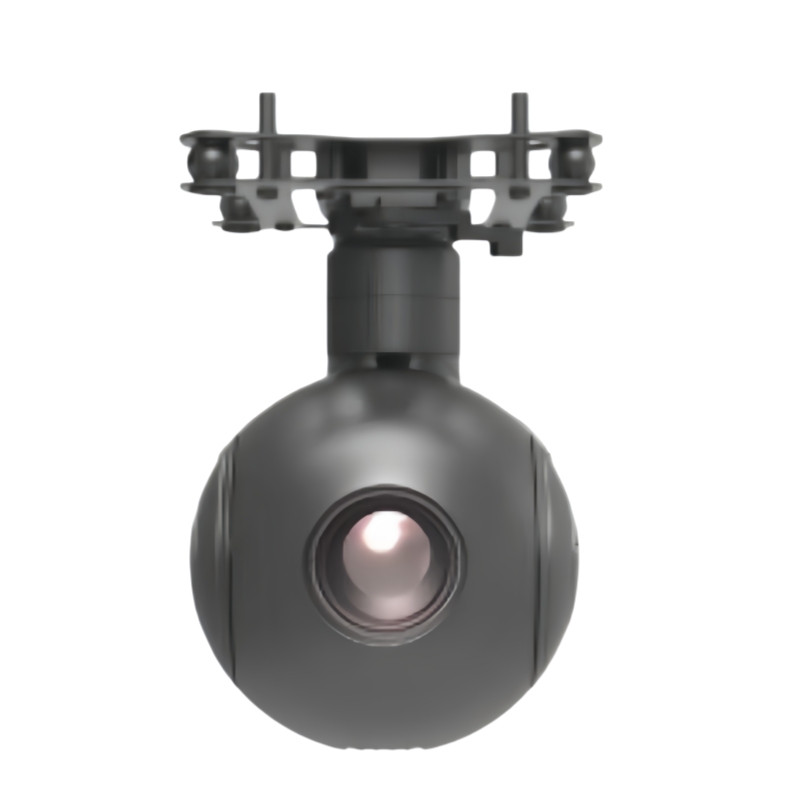

The TX1215TA provides similar multi-sensor capability in a compact configuration, optimized for lightweight UAV integration.
| Parameter | Specification |
|---|---|
| EO Camera | 2MP |
| Optical Zoom | 10× |
| EO FOV | 54° × 31° ~ 4.9° × 4.0° |
| EO Focal Length | 5.1mm ~ 51mm |
| Thermal Sensor | 640×512 |
| Thermal Lens | 25mm |
| Laser Rangefinder | 10m–1,200m |
| Control Interface | RS422 / UART / ETH (UDP) |
| Video Interface | SYNC422 / ETH |
| Storage | ≤128GB Micro SD |
| Power Supply | 12–32V DC |
| Weight | ≤700g |
| Dimension | 115 × 128.5 × 176mm |

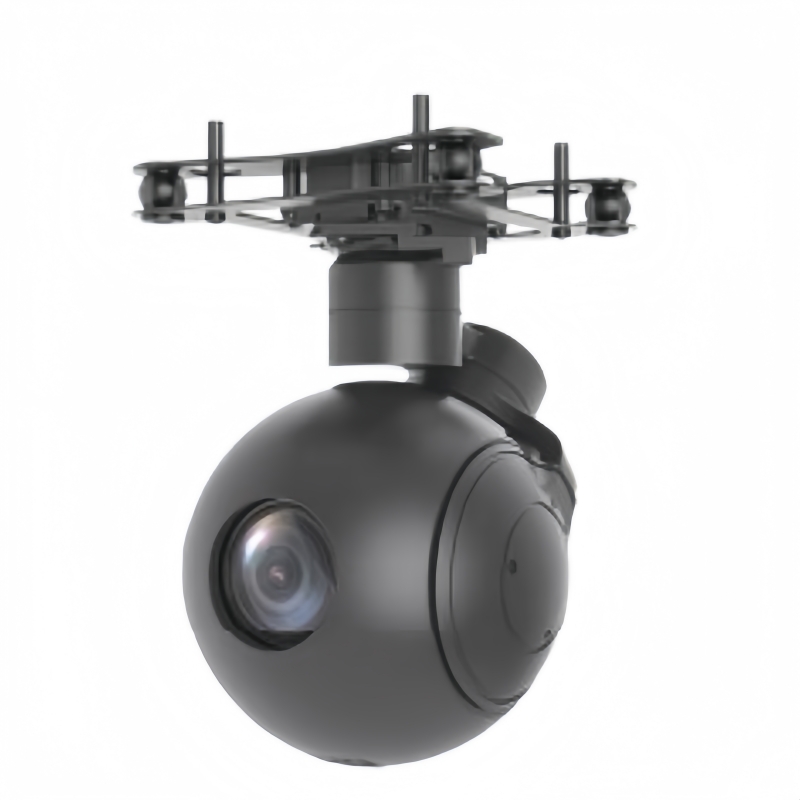

The TX120VA is designed for long-distance aerial observation missions, featuring an advanced EO camera with up to 55× optical zoom and 110× hybrid zoom capability.
It provides high-detail imaging for applications requiring extended observation distances.
| Parameter | Specification |
|---|---|
| EO Camera | 2MP |
| Optical Zoom Options | 55× / 40× |
| Hybrid Zoom | Up to 110× |
| 55× Lens Focal Length | 4.25mm–234mm |
| 40× Lens Focal Length | 4.25mm–170mm |
| Control Interface | RS232 / UART / RS422 / ETH (UDP) / SBUS |
| Video Interface | ETH |
| Storage | ≤128GB Micro SD |
| Power Supply | 12–32V DC |
| Weight | ≤845g |
| Dimension | 120 × 130.1 × 198mm |
| Feature | TX108TA | TX1215TA | TX120VA |
|---|---|---|---|
| Sensor Type | EO + TI + LRF | EO + TI + LRF | EO Camera |
| EO Zoom | 10× | 10× | 55× / 40× |
| Thermal Imaging | 640×512 | 640×512 | No |
| Laser Rangefinder | 10–1200m | 10–1200m | No |
| Weight | ≤750g | ≤700g | ≤845g |
| Quick Release | Yes | Optional | Yes |
| Target Positioning | Yes | Optional | No |
| Best Application | Multi-sensor reconnaissance | Lightweight day/night missions | Long-range surveillance |
The multi-sensor models integrate laser rangefinder technology:
Range: 10m–1,200m
Benefits:
The combination of EO, thermal imaging, and laser measurement enables operators to obtain comprehensive information from a safe distance.
The payload series supports integration with various UAV platforms:
Designed for professional outdoor operations:
| Parameter | Specification |
|---|---|
| Operating Temperature | -20℃ to +55℃ |
| Storage Temperature | -40℃ to +60℃ |
| Vibration Resistance | 2g acceleration |
| Shock Resistance | 20g peak acceleration, 11ms |
| Weather Protection | Light Rain Operation |
Provides high-quality aerial observation for:
Thermal and optical sensors support:
Supports:
Suitable for:
Combines EO, thermal imaging, and laser ranging technologies into compact UAV payload systems.
≤0.1mrad stabilization accuracy ensures clear aerial imaging.
Automatic recognition and tracking reduce operator workload.
700g–845g payload weight supports small and medium drone platforms.
Multiple models cover short-range inspection to long-range aerial surveillance requirements.
