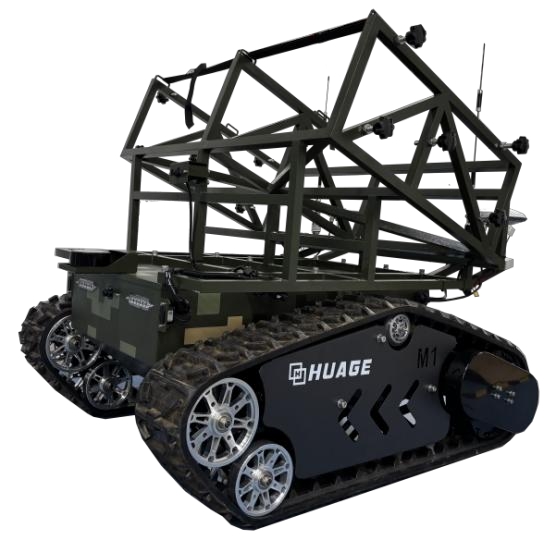

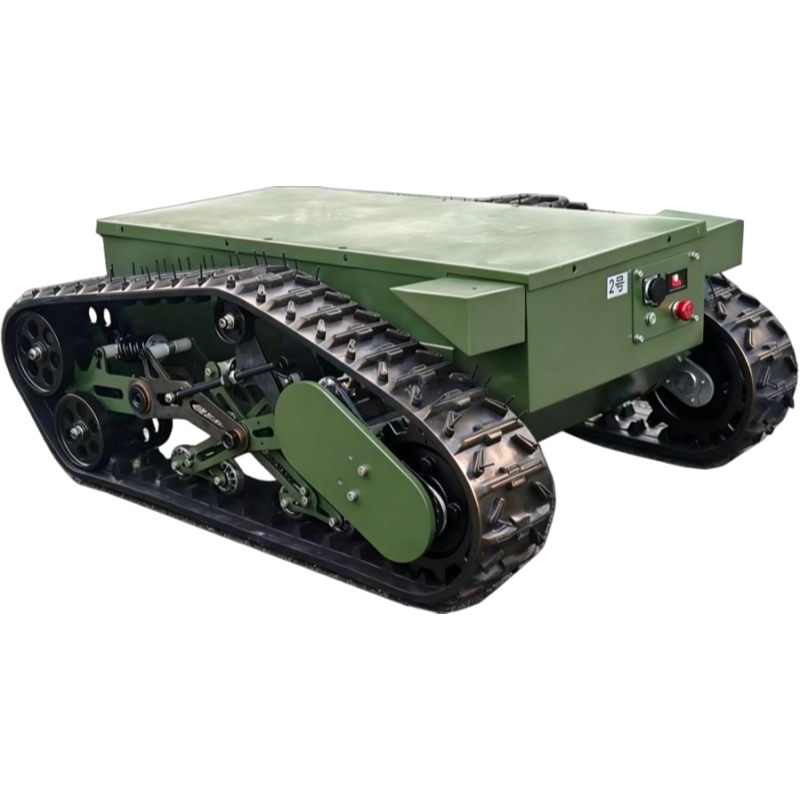

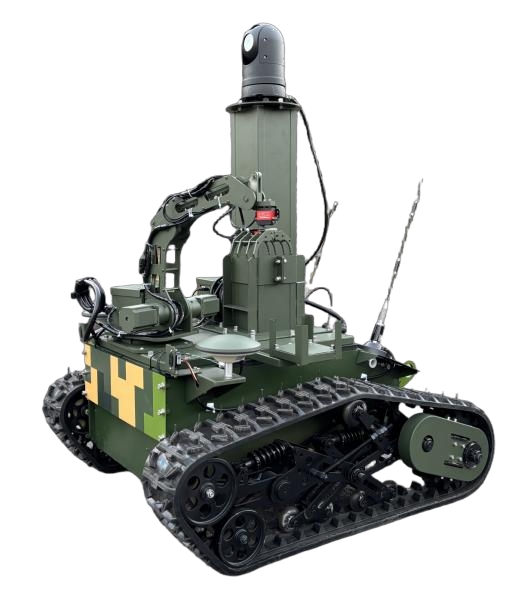

The M1 All-Terrain Tracked UGV is a series of electric-driven intelligent unmanned platforms developed by Nanjing Huage Information Technology Co., Ltd. Adopting a modular architecture for rapid upgrade and maintenance, it is equipped with tank-style independent suspension and a differential track traveling mechanism. The platform features high payload capacity, high speed, strong climbing and off-road performance, as well as 360° in-situ rotation. Adaptable to various complex military all-terrain scenarios, the HUAGE M1 integrates a self-developed VCU and on-board HUAGE intelligent driving module to meet military autonomous driving requirements. It provides a one-stop solution including platform, intelligent driving, and payload application. Fully verified through military customized projects, the HUAGE M1 offers outstanding reliability and stability, and has spawned more than 10 vehicle models to meet diverse mission demands.
Tank-Style Independent Suspension – Differential track traveling mechanism for superior off-road performance and stability.
360° In-Situ Rotation – Zero-turn radius maneuverability for tight spaces and rapid directional changes.
High Payload & High Speed – Powerful electric drive system for heavy cargo transport and rapid deployment.
Modular Architecture – Designed for rapid upgrade and maintenance, supporting over 10 vehicle models from a single platform.
Self-Developed VCU + Intelligent Driving Module – Military-grade autonomous driving capability for complex tactical scenarios.
All-Terrain Adaptability – Proven performance in mountains, sand, grassland, gravel, and other complex military environments.
One-Stop Solution – Integrated platform, intelligent driving, and payload application for turnkey deployment.
Military Verified Reliability – Fully validated through military customized projects with outstanding stability.
Main Technical Specifications
(1) Overall dimensions: 1085×900×500mm；
(2) Curb weight: 150kg；
(3) Maximum payload: 100kg；
(4) Shock absorption design: Christie suspension + Matildafour-wheel balanced suspension；
(5) Power type: Pure electric drive；
(6) Motion mode: Track differential drive, 360° in-situ rotation
(7) Anti-collision design: Standard ultrasonic radar；
(8) Track width: 150mm；
(9) Maximum speed: 10km/h (18km/h customizable)；
(10) Endurance time: 4h (8h / 6h customizable)；
(11) Maximum climbing angle: 35°；
(12) Maximum vertical obstacle crossing: 180mm；
(13) Maximum wading depth: 180mm；(14) Maximum trench crossing width: 500mm；
(15) External power supply: 24V 480W；(16) Supports secondary development and expansion, providingdevelopment, debugging and simulation interfaces.
