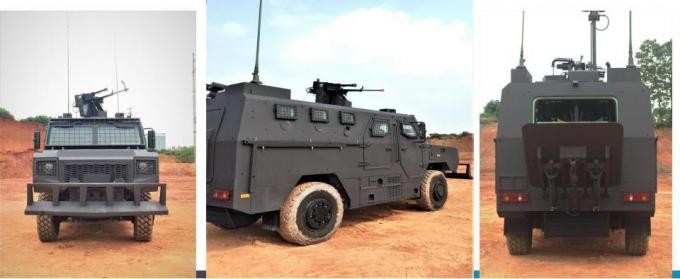

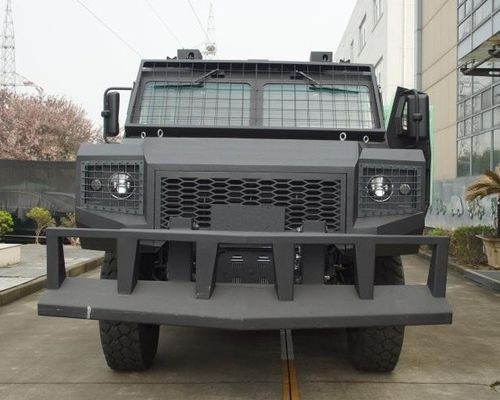

The NR3 4×4 Armored Anti-Riot Vehicle is a high-performance protected vehicle designed for police forces, public security organizations, and professional response teams requiring reliable mobility, personnel protection, and mission flexibility in complex environments.
Built on a military-grade 4×4 chassis and powered by a 6.7L turbo diesel engine, the vehicle combines strong off-road capability, armored protection, and multi-purpose operational functions. It can support various missions including personnel transport, command communication, obstacle removal, and urban security operations.
With a modular design approach, the NR3 can be configured with different mission equipment according to specific operational requirements.
The NR3 armored vehicle is designed to provide enhanced protection while maintaining excellent mobility across urban and off-road environments.
The vehicle features an armored structure that can be upgraded from STANAG Level 1 protection to NATO STANAG Level 3 capability, providing improved resistance against ballistic threats. Additional floor protection upgrades are available to enhance mine blast protection capability.
Key protection features include:
Equipped with a Cummins 6.7L turbo diesel engine and automatic transmission system, the NR3 delivers strong power output and reliable field performance.
The 4×4 drivetrain enables operation across:
Its high mobility design allows teams to deploy quickly in challenging environments.
The NR3 is designed as a flexible platform that can be adapted for different operational roles.
Possible configurations include:
The vehicle provides protected transportation for police, security personnel, and tactical teams.
Integrated communication and command systems can transform the vehicle into a mobile operational center.
The platform can support specialized equipment for emergency response and field operations.
Optional systems can enhance situational awareness and operational effectiveness.
Available equipment options may include:
| Item | Specification |
|---|---|
| Model | CX21LYX0507 |
| Vehicle Type | 4×4 Armored Anti-Riot Vehicle |
| Drive Mode | 4×4 |
| Engine | 6.7L Turbo Diesel |
| Maximum Power | 180 kW / 2500 rpm |
| Maximum Torque | 925 N·m / 1400 rpm |
| Maximum Speed | 105 km/h |
| Maximum Range | 1000 km |
| Seating Capacity | 10-12 Personnel |
| Layout | Driver + Co-pilots + Gunner + Personnel |
| Gross Vehicle Weight | 12,500 kg |
| Payload Capacity | 2,000 kg |
| Tire Size | 365/85R20 |

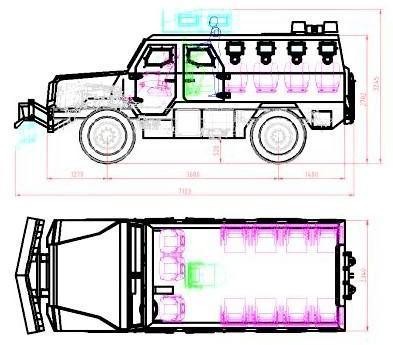

| Dimensions | 6270 × 2340 × 2700 mm |
| Ground Clearance | 350 mm |
| Maximum Gradient | 60% |
| Maximum Side Slope | 40° |
| Maximum Fording Depth | 750 mm |
| Vertical Obstacle Crossing | 450 mm |
| Trench Crossing Capability | 650 mm |
The NR3 armored anti-riot vehicle is suitable for:
China Xinxing Xiamen Import and Export Co., Ltd. provides specialized vehicle solutions for government organizations, security agencies, emergency response teams, and international customers.
Our product portfolio includes armored vehicles, emergency response vehicles, firefighting vehicles, unmanned systems, protective equipment, and professional mission-support solutions.
With integrated manufacturing resources and customized configuration capabilities, we support customers with reliable protected mobility solutions for demanding operational environments.
Condiciones de pago :
L/C, T/TCapacidad de suministro :
100 Per MonthPrecio :
1-9 Vehicle / US $250,000 | 10-49 Vehicle / US $245,000 | 50+ Vehicle / US $238,000
| Tracción | 4×4 |
| Capacidad de asientos | 10-12 |
| Peso bruto del vehículo (kg) | 12500 |
| Carga útil (kg) | 2000 |
| Neumático | 365/85R20 |
| Dimensiones Lx Anx Al (mm) | 6270x2340x2700 |
| Tipo de motor | Turbodiésel de 6,7 l |
| Potencia máxima (Kw/rpm) | 180/2500 |
| Par motor máximo (Nm/rpm) | 925/1400 |
| Velocidad máxima en carretera (km/h) | 105 kilómetros por hora |
| Kilometraje máximo de resistencia (km) | 1000 kilómetros |
| Superabilidad | 60% |
| Ángulo máximo de balanceo | 40% |
| Distancia al suelo (mm) | 350 mm |
| Profundidad máxima de vadeo (mm) | 750 mm |
| Superación de obstáculos verticales Altura (mm) | 450 mm |
| Ancho del cruce de zanja (mm) | 650 mm |
