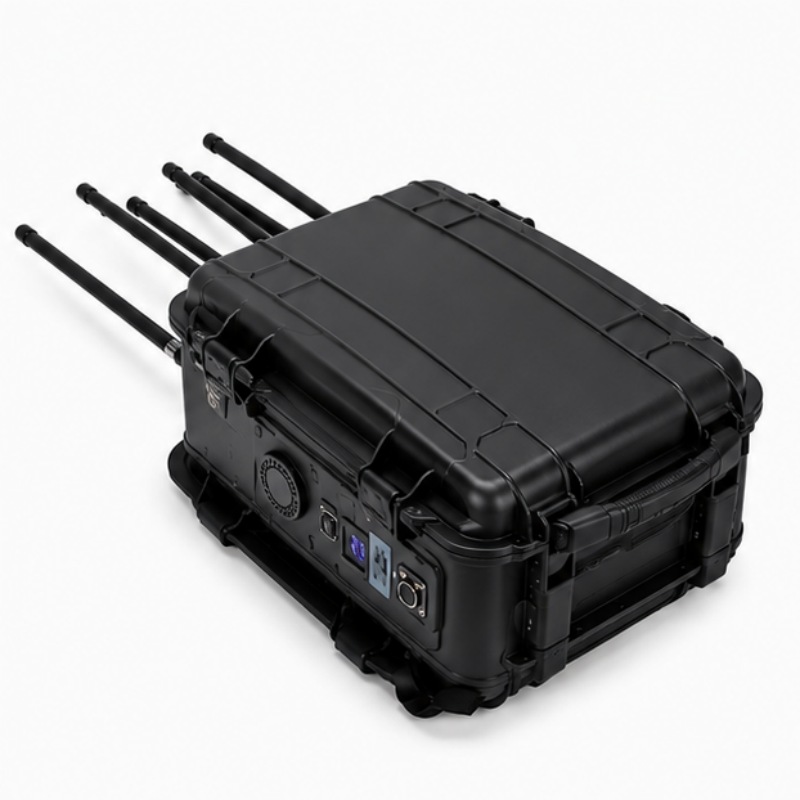

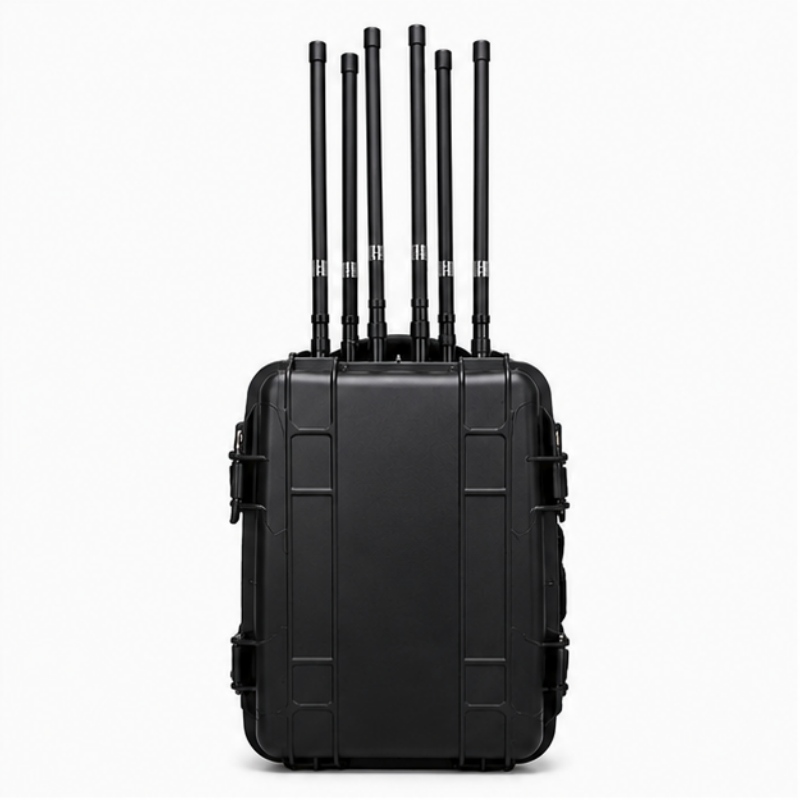

The 750B6 Backpack Anti-Drone Jammer is a high-performance portable counter-UAV system designed for disrupting unauthorized drones, FPV UAVs, GPS navigation systems, and wireless communication links. Built for military, law enforcement, prison security, airport protection, border patrol, and critical infrastructure defense, the system delivers reliable long-range anti-drone interference in mobile tactical environments.
Powered by multi-band interference technology, the EST-750B6 can effectively block drone remote-control signals, FPV video transmission, and satellite positioning systems including GPS, Beidou, GLONASS, and Galileo.
The backpack-style structure allows rapid deployment and convenient transportation during field operations, emergency response, temporary no-fly zone enforcement, and mobile anti-drone missions.
Supports simultaneous interference against multiple UAV communication and navigation frequencies:
Capable of disrupting FPV drones, commercial UAVs, DIY drones, and long-range unmanned aerial systems.
The system can interfere with multiple satellite navigation systems including:
This helps force drones into:
Integrated high-capacity battery system supports continuous operation for:90–120 minutes
Ideal for outdoor tactical deployment and long-duration missions.
Multiple units can be networked together for centralized control and coordinated anti-drone defense operations.
The reinforced metal enclosure provides excellent protection against:
Integrated cooling fans and heat dissipation modules ensure stable continuous operation.
The EST-750B6 detects and suppresses UAV communication signals by transmitting high-power interference signals across common drone frequency bands. Once communication and navigation links are interrupted, the target drone may lose control capability, FPV video transmission, or satellite positioning.
The system is particularly effective against:
| Parameter | Specification |
|---|---|
| Model | EST-750B6 |
| Frequency Bands | 433M / 915M / 1.2G / GPS1.5G / 2.4G / 5.8G |
| 433M Frequency | 428–468MHz |
| 915M Frequency | 840–960MHz |
| 1.2G Frequency | 1170–1280MHz |
| GPS 1.5G Frequency | 1500–1620MHz |
| 2.4G Frequency | 2400–2500MHz |
| 5.8G Frequency | 5715–5860MHz |
| Output Power | 50W per channel |
| Battery | Built-in 29.4V / 35AH |
| Operating Time | 90–120 Minutes |
| Antenna | External Omnidirectional Antenna |
| Effective Range | 1–1500M |
| Power Consumption | 700W |
| Dimensions | 488 × 369 × 189 mm |
| Weight | Approx. 15KG |

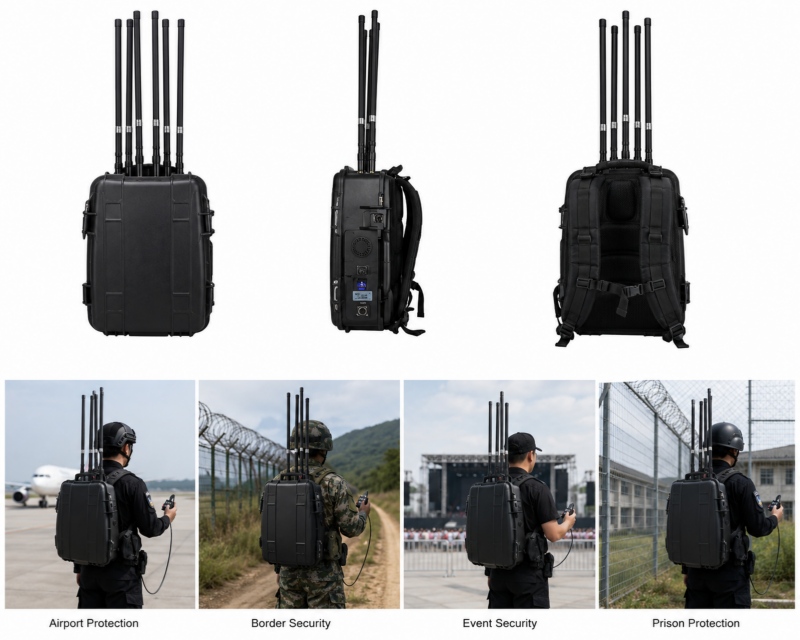

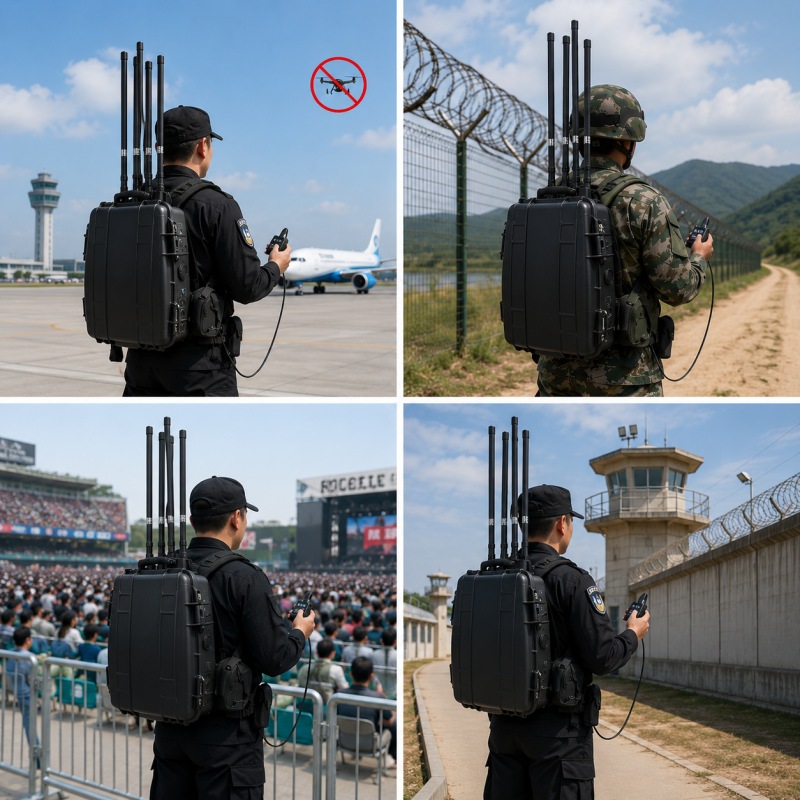

Prevents drone interference near airports, railways, and transportation infrastructure.
Blocks illegal drone smuggling, contraband delivery, and unauthorized border surveillance.
Supports battlefield anti-drone defense and tactical electronic countermeasure deployment.
Provides temporary drone defense for:
The system can interfere with FPV drones, commercial UAVs, DIY drones, and other unmanned aerial systems operating within supported frequency bands.
Yes. The device supports interference against GPS, Beidou, GLONASS, and Galileo satellite positioning systems.
Depending on the drone’s fail-safe settings, it may:
The effective interference range can reach up to 1500 meters depending on terrain, signal environment, and target drone specifications.
Yes. The backpack design allows rapid mobile deployment by a single operator.
The built-in battery supports approximately 90–120 minutes of continuous operation.
Yes. Multiple EST-750B6 units can be networked for centralized management and coordinated defense operations.
Yes. We support:
Typical applications include:
